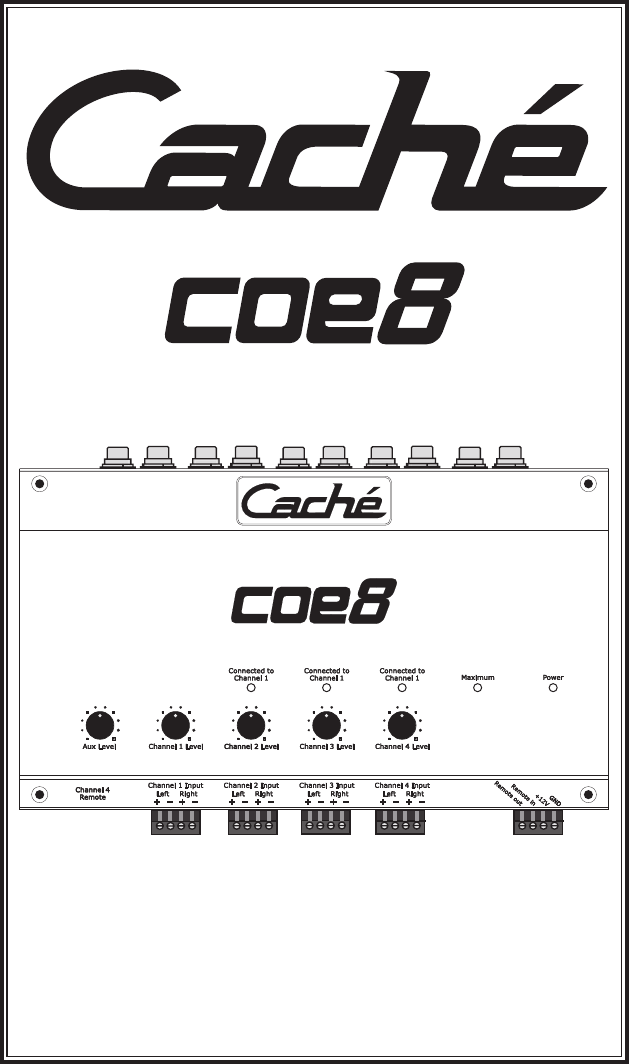

OWNERS MANUAL8 CHANNEL LINE OUTPUT CONVERTER

10Example System #4coe8 conguration for an active 3 way front, plus sub input system using the blend mode on channels 2 & 3.Jumper Position

11Caché WarrantyCaché warrants this product to be free from defects in material and work-manship for a period of one (1) year from the original da

6915 W Frye RdChandler, AZ 85233480 305 8999 480 813 6210 Faxwww.cacheaudio.com

2GreetingsWelcome to Caché Audio Integration Solutions. We believe you will nd our products to be as easy to install as they are to use. Our unique

3Operation and FunctionPower Connections- These connections are for input power, chassis ground, and remote turn-on. Use a minimum of 18 gauge wire fo

4Installation GuidelinesINSTALLATION PRECAUTIONS• Always mount the unit in a fashion so that it can be easily accessible for making adjustments.• A

5Internal Jumper OptionsIsolation Jumpers- This jumper provides three different ground isolation options for the input of the coe8. The

6Internal Jumper Options

7Example System #1coe8 conguration for a full range high level 6 channel input system in direct mode.Jumper Position

8Example System #2coe8 conguration for a full range high level 4 channel input system in direct mode.Jumper Position

9Example System #3coe8 conguration for an active 2 way front, plus rear input system using the blend mode on channel 2.Jumper PositionFront Tweeter I
